| Casing | ||
| Type | Mid Tower | |
| Color(s) | Black | |
| Motherboard Support | ATX, M-ATX, ITX | |
| Fan Support | Front : 3 x 120mm/2 x 140mm Top: 3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket) 2 x 120mm / 2 x 140mm (w/o ODD but with ODD bracket) 2 x 120mm / 1 x 140mm(When ODD is installed) |
|
| Radiator Support | Front: 120/240/280/360mm (≤ 55mm thickness when fans are installed outside of front panel) (≤ 30mm thickness when fans are installed inside of front panel) [Max Radiator Length ≤ 405mm] Top: 240/280/360mm (w/o ODD and w/o ODD bracket) 240/280mm (w/o ODD but with ODD bracket) 120mm(When ODD is installed) Rear: 120mm [Max Radiator Length ≤ 405mm] |
|
| Expansion Slots | 7 | |
| I/O Port | Power, LED Control Button, 2 x USB3.0, HD-AUDIO | |
| Drive Bays | 5.25": 1 3.5" /2.5": 3/2 2.5": 3 |
|
| Dimensions | 463 x 220 x 486 mm | |
| Weight | 7.55KG | |

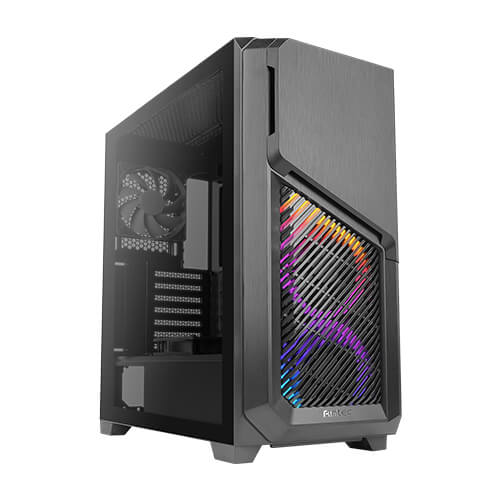

The definition of FLUX is Flow Luxury. The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow combined with 5 x pre-installed 120 mm fans. A core element of the design ethos was to provide heightened GPU cooling performance. The DP502 FLUX mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark League to the next generation. All the hubs have a dust plug, preventing them from damage. F-LUX Platform adopts the design of a powerful ventilation system via the lower right-side panel, which pulls cool air into the case through the lower PSU shroud and then up into the main interior; specifically targeting your GPU. Provide incredible cooling to your components with room for radiator up to 360 mm in the front, 360 mm on the top & 120 mm at the rear. Provide mass airflow to your components with room for up to 9 x 120 mm fans. Electroplating-processed LED on the top left-hand side presents a Sci-Fi vibration. Ready for radiator up to 360 mm in front, 360 mm on top & 120 mm in rear.
