| Motherboard | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Memory Type | DDR4 | |
| Memory Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| HDMI | 1 x HDMI Port | |
| USB (s) | 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Manufacturing Warranty | 3 years | |

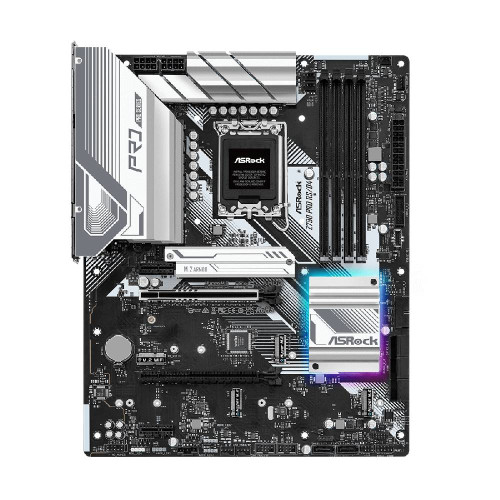

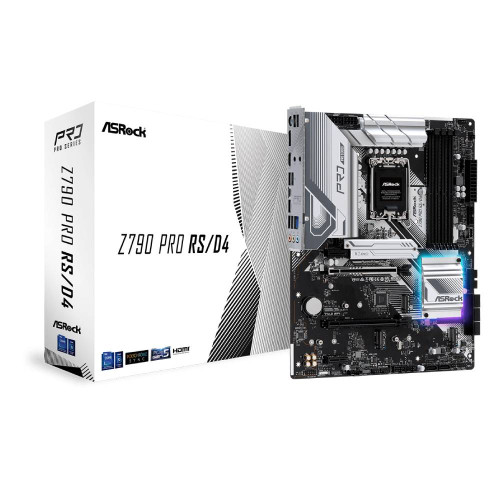

ASRock Z790 Pro RS/D4 ATX Motherboard is a powerhouse engineered to deliver top-tier performance and reliability. With support for 14th, 13th, and 12th Gen Intel Core Processors, PCIe Gen5, and DDR4 memory technology, this motherboard is designed for enthusiasts seeking unparalleled computing power.
Unleash the power of next-gen graphics with PCIe Gen5 support.
Benefits: Experience superior graphics performance for gaming, content creation, and multimedia applications.
Ensure stability and efficiency in power delivery for VCore and GT with Enlarged Heatsink Armor.
Benefits: Optimal power regulation enhances system reliability, especially under heavy workloads or gaming.
Simplify installation and enhance EMI protection.
Benefits: Streamline the build process while improving electromagnetic interference protection for a more stable system.
Enjoy high-speed network connections for seamless online experiences.
Benefits: Fast and reliable network connectivity for smooth online gaming, streaming, and file transfers.
Streamline driver updates with the convenient auto-installer.
Benefits: Effortlessly keep system drivers up-to-date, ensuring compatibility and optimal performance.
Quickly diagnose and troubleshoot system issues.
Benefits: Simplify system diagnostics, saving time and facilitating troubleshooting for a more efficient user experience.
Effortlessly update drivers for optimal system performance.
Benefits: Keep all drivers current with minimal effort, ensuring peak system performance and stability.
Harness the latest processor technologies for enhanced computing power.
Benefits: Stay at the forefront of CPU technology, unlocking increased performance and efficiency.
Maximize CPU performance for demanding applications.
Benefits: Optimize CPU performance for resource-intensive tasks, delivering a responsive computing experience.
Elevate system responsiveness and data transfer speeds.
Benefits: Enhance multitasking capabilities and overall system performance with DDR4 memory.
The latest price of the ASRock Z790 Pro RS/D4 ATX Motherboard in Bangladesh is 29,700৳. You can buy the ASRock Z790 Pro RS/D4 ATX Motherboard at the best price from our website or visit any of our showrooms.
The ASRock Z790 Pro RS/D4 ATX Motherboard combines cutting-edge technology with rock-solid durability, offering a superior computing experience. Elevate your productivity, enjoy ultrafast connectivity, and benefit from the latest Intel technologies. Trust in the reliability and performance of ASRock for your computing needs.
Q: What processors does the ASRock Z790 Pro RS/D4 support?
A: The motherboard supports 14th, 13th, and 12th Gen Intel Core Processors (LGA1700).
Q: What is the maximum capacity of DDR4 memory supported?
A: The motherboard supports up to 128GB of DDR4 non-ECC, un-buffered memory.
