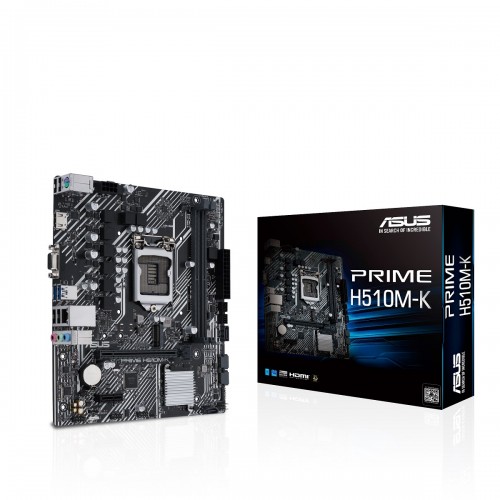

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard

Model: Prime H510M-K
Product Code: 11285
Availability: In Stock

Quick Overview

Model: Prime H510M-K
Ready for 11th and 10th Gen Intel Processors
5X Protection III
Ultrafast Connectivity
Comprehensive Cooling

View More Info

Review:

0 Customer Review

10,300৳

Quantity:

Specification
Description
Reviews (0)

Specification:

Motherboard
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX: 22.6cm x 20.3cm
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot
Memory Type	DDR4
Memory Slots	2 x DIMM
Supported Memory	DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics	1 x D-Sub 1 x HDMI 1.4 / 2.0
HDMI	1 x HDMI 1.4
USB (s)	Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet
Supported Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Manufacturing Warranty	Manufacturing Warranty 3 years

Description :

The Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard is crafted to deliver essential performance and dependable functionality. Tailored to support both 10th and 11th generation Intel processors, this motherboard offers a compact Micro-ATX form factor, making it a versatile choice for different system configurations.

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard Features & Benefits:

10th and 11th Gen Intel Compatibility: Designed to seamlessly support both 10th and 11th generation Intel Core processors, this motherboard delivers efficient processing power for everyday computing tasks, ensuring smooth multitasking and responsive applications.

Micro-ATX Form Factor:

The compact size of the motherboard makes it suitable for a range of PC setups, including smaller cases, while maintaining essential features and performance.

DDR4 Memory Support:

Equipped with two DDR4 DIMM slots, the motherboard supports high-speed memory modules, enhancing data processing and multitasking capabilities.

Comprehensive Connectivity:

The motherboard features USB ports, HDMI output, Gigabit Ethernet, and audio connectors, ensuring connectivity for peripherals, displays, networking devices, and audio components.

ASUS OptiMem:

This technology optimizes memory stability and performance, ensuring efficient data flow and enhancing overall system responsiveness.

5X Protection II:

Asus's 5X Protection II provides essential safeguards for reliable performance, including surge protection and stable power delivery.

UEFI BIOS:

The user-friendly UEFI BIOS interface simplifies system setup and customization, catering to both beginners and advanced users.

What is the price of the Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard in Bangladesh?

The latest price of Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard in Bangladesh is 8,200৳. You can buy the Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard at the best price from our website or visit any of our showrooms.

This latest ASUS PRIME H510M-K Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Years Warranty

The Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard offer essential performance and reliable functionality for a range of computing needs. With compatibility for both 10th and 11th-generation Intel processors, support for DDR4 memory, comprehensive connectivity options, and enhanced stability features, this motherboard ensures efficient multitasking and versatile performance. Whether you're building a home PC, a workstation, or a budget-friendly system, the Asus Prime H510M-K motherboard provides the necessary features and benefits to meet your computing requirements, making it a solid choice for diverse setups.

Q1: Is this motherboard compatible with both 10th and 11th-generation Intel processors?

A: Yes, the Asus Prime H510M-K motherboard is designed to seamlessly support both 10th and 11th-generation Intel Core processors.

Q2: What type of memory does this motherboard support?

A: The motherboard supports DDR4 memory modules, enhancing multitasking capabilities and overall system responsiveness.

Q3: What connectivity options are available?

A: The motherboard offers USB ports, HDMI output, Gigabit Ethernet, and audio connectors, providing comprehensive connectivity options for peripherals, displays, networking, and audio components.

Q4: Does this motherboard provide stable power delivery?

A: Yes, Asus's 5X Protection II offers essential safeguards, including stable power delivery, ensuring reliable performance.

Q5: Is the BIOS interface user-friendly?

A: Yes, the motherboard features a user-friendly UEFI BIOS interface that simplifies system setup and customization, catering to both beginners and advanced users.
