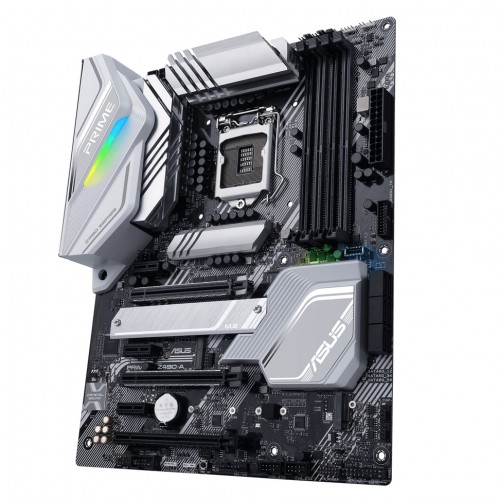

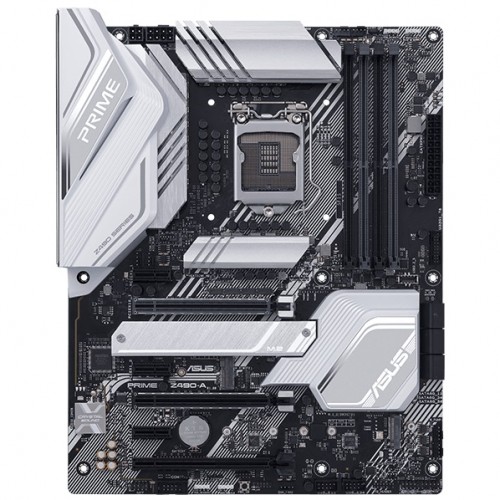

Asus Prime Z490-A Intel 10th Gen ATX Motherboard
Asus Prime Z490-A Intel 10th Gen ATX Motherboard
Asus Prime Z490-A Intel 10th Gen ATX Motherboard
Asus Prime Z490-A Intel 10th Gen ATX Motherboard
Asus Prime Z490-A Intel 10th Gen ATX Motherboard
Asus Prime Z490-A Intel 10th Gen ATX Motherboard

Asus Prime Z490-A Intel 10th Gen ATX Motherboard

  • Model: Asus Prime Z490-A
  • Product Code: 11302
  • Availability: In Stock

Quick Overview

  • Model: Asus Prime Z490-A
  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
  • Fan Xpert 4
  • Enhanced power solution
  • Ready for Ultrafast Connectivity
  • View More Info
Review:
0 Customer Review
24,500৳
25,800৳ (Previous Price)
Quantity:

Specification:

Motherboard
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
PCI Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel Z490 Chipset
1 x PCIe 3.0 x16 (max at x4 mode)
3 x PCIe 3.0 x1
Memory Type Dual Channel Memory Architecture
Memory Slots 4 x DIMM
Supported Memory 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
OptiMem II
Maximum Memory 128GB
Graphics Integrated Graphics Processor- Intel UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
HDMI 1 x HDMI 1.4b

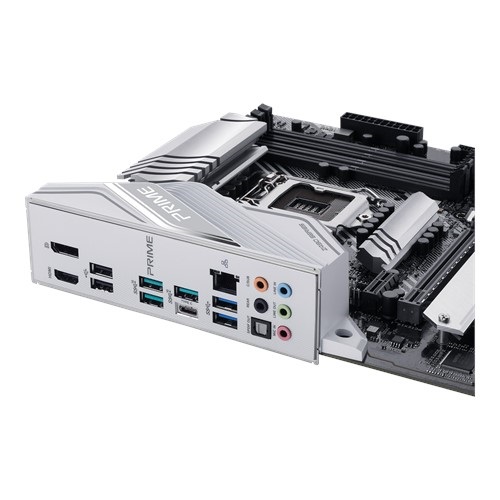

USB (s) Rear USB Port ( Total 8 )
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s) Intel I225-V 2.5Gb Ethernet
ASUS LANGuard
Supported Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
Audio Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- Optical S/PDIF in port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
- Power pre-regulator: Reduces power input noise to ensure consistent performance
Internal I/O Ports 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x M.2 Fan Header
TPM (Trusted Platform Module ) N/A
Manufacturing Warranty 03 Years

Description :

Asus Prime Z490-A Intel 10th Gen ATX Motherboard

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z490 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z490 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. ASUS 5-Way Optimization makes your PC smart, taking care of complex tuning with just one click. It dynamically optimizes essential aspects of your system, providing overclocking and cooling profiles that are tailored for your rig. Prime Z490 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 drive sits under a passive heatsink to ward off the throttling that can occur with sustained transfers. The heatsink is held in place by easily removable captive screws, giving you the flexibility to move it to another M.2 slot. Prime Z490 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. A Z490 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime Z490 motherboard is geared to cater to the demands of these high-core count CPUs. Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. Prime Z490 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Prime Z490-A utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120 dB signal-to-noise ratio for the stereo line out and a 113 dB SNR for the line-in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones. DTS:X Ultra adds a spatial audio feature to boost headphones and speakers for enhanced gaming, VR, and extended-reality experiences. DTS:X Ultra supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements and device-level tuning for DTS® codecs.
