  • Model: PRO H510M-C/CSM
  • Product Code: 11289
  • Availability: In Stock

Quick Overview

  • Model: PRO H510M-C/CSM
  • Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
  • ASUS-exclusive self-recovering BIOS technology
  • Innovative moisture-resistant coating
  • PCIe 4.0 and Intel 1 Gb Ethernet
  • View More Info
Review:
0 Customer Review
8,800৳
9,500৳ (Previous Price)
Quantity:

Specification:

Motherboard
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 21.6cm
PCI Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode

Intel H510 Chipset
2 x PCIe 3.0 x1 slots*
1 x PCI slot
Memory Type DDR4
Memory Slots 2 x DIMM
Supported Memory 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 64 GB
Graphics 1 x DP1.4**
1 x D-Sub
1 x DVI-D
* Graphics specifications may vary between CPU types.
** Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
**** Supports up to 2 displays simultaneously.
HDMI 1 x HDMI

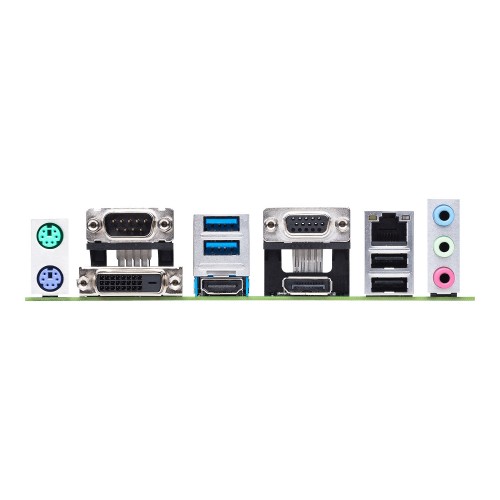

USB (s) Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) ASUS LANGuard
Supported Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
4 x SATA 6Gb/s ports
* When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
Audio 3 x Audio jacks
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Manufacturing Warranty Manufacturing Warranty
03 Years Warranty

Description :

ASUS Pro H510M-C/CSM 10th & 11th Gen Micro-ATX Motherboard

The ASUS Pro H510M-C/CSM Micro-ATX Motherboard provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. It supports Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors. It comes with ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup. ASUS Pro H510M-C/CSM supports an SMBUS header that connects to a DASH LAN for remote IT management. It is known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing needs. It has an Innovative moisture-resistant coating to protect the motherboard from harsh environments. It comes with ASUS Control Center Express (ACCE) for easier IT endpoint management.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. The ASUS Pro H510M-C is a CSM Business Motherboard. It comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with the ASUS Pro H510M-C/CSM to provide a high-quality, TCO-optimized solution for your business needs.

Internationally Certified Business Motherboard

The ASUS Pro H510M-C/CSM is an enterprise-proven motherboard with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, the ASUS Pro H510M-C/CSM business motherboard provides a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Self-recovering BIOS

The ASUS Pro H510M-C/CSM features ASUS Self-recovering BIOS. It ensures safe BIOS updates, reduces maintenance frequency and costs, and requires no extra software. It also provides automatic update failure detection and recovery.

ASUS Pro H510M-C/CSM 10th & 11th Gen Motherboard comes with 3 years of warranty.
