| Motherboard | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Type | DDR5 | |
| Memory Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
|
| Maximum Memory | 192 GB (48 GB single DIMM capacity) | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|

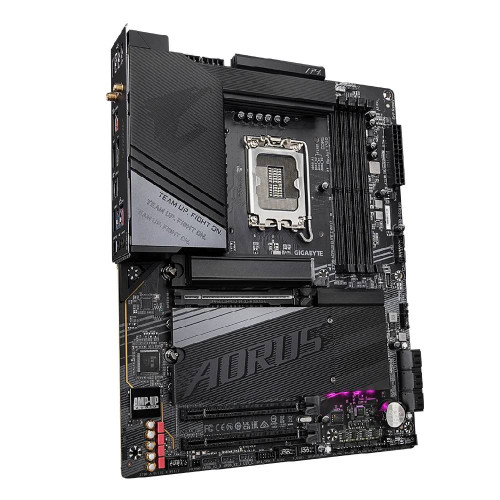

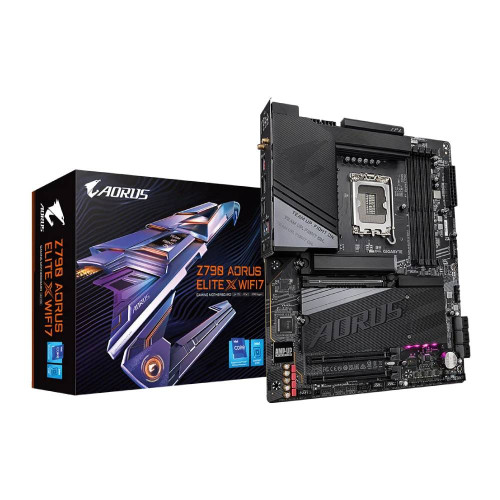

Experience the next level of computing with the GIGABYTE Z790 AORUS ELITE X WIFI7 DDR5 ATX MOTHERBOARD. Engineered for compatibility with the latest Intel processors, this motherboard combines advanced features, robust design, and high-quality components to provide a platform that excels in gaming and professional applications.
Support for 14th, 13th, and 12th Gen Intel Core processors ensures a powerful and future-proof system.
Embrace the speed with support for DDR5 8266(O.C) memory modules, offering a peak performance for your system.
The motherboard features a PCI Express x16 slot supporting PCIe 5.0, providing optimal performance for graphics cards.
Enjoy high-speed and reliable network connectivity with the integrated Intel 2.5GbE LAN chip.
The MediaTek Wi-Fi 7 module supports the latest wireless standards, including 802.11ax and Bluetooth 5.3, ensuring fast and stable wireless connections.
Multiple M.2 connectors and SATA ports, including support for RAID configurations, offer versatile storage options for your data.
With USB Type-C, USB 3.2 Gen 2x2, and a variety of USB ports, connect your devices with ease.
Customize your build with addressable RGB Gen2 LED strip headers and an RGB LED strip header, adding a touch of personalization to your system.
Convenient features like Q-Flash and Smart Backup enhance system management and data security.
Unlock additional functionalities with GCC, tailoring your motherboard's performance to your preferences.
The latest price of the GIGABYTE Z790 AORUS ELITE X WIFI7 DDR5 ATX MOTHERBOARD in Bangladesh is 0৳. You can buy the GIGABYTE Z790 AORUS ELITE X WIFI7 DDR5 ATX MOTHERBOARD at the best price from our website or visit our showrooms.
The GIGABYTE Z790 AORUS ELITE X WIFI7 DDR5 ATX MOTHERBOARD is a powerhouse designed for enthusiasts and professionals alike. Whether gaming, creating content, or pushing the limits of performance, this motherboard provides the stability, speed, and customization options you need.
Q: What processors are supported by the GIGABYTE Z790 AORUS ELITE X WIFI7 motherboard?
A: The motherboard supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors.
Q: What is the maximum memory capacity of the motherboard?
A: The motherboard supports up to 192 GB of DDR5 memory across 4 DIMM sockets.
Q: Does the motherboard support PCIe 5.0?
A: Yes, the motherboard features a PCI Express x16 slot supporting PCIe 5.0 for optimal graphics card performance.
Q: What storage options are available on the motherboard?
A: The motherboard includes M.2 connectors, and SATA ports, and supports RAID configurations for versatile storage solutions.
Q: Is the motherboard compatible with Windows 11?
A: Yes, the motherboard is compatible with the Windows 11 64-bit operating system.
Explore the GIGABYTE Z790 AORUS ELITE X WIFI7 DDR5 ATX MOTHERBOARD and elevate your computing experience to new heights.
