| UPS | ||
| Capacity | 10-60kVA | |
| Input Voltage | 380±25% | |
| Output Voltage | 380/400/415±1％ | |
| Frequency (Battery Mode) | ||
| Noise Level | <60(within 1 meter) | |
| Battery | ||
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Frequency | 45～66 Automatically select synchronization range according to grid frequency | |
| Power Factor | 0.8/0.9 | |
| Voltage Range | 380/400/415±1％, Isolation transformer output | |
| Backup Time | Battery supply life can be configured freely | |
| Voltage Range | ||
| Type of Wave | ||
| Type of Wave | Sine Wave,THD<3% | |
| Warranty | 1 year | |

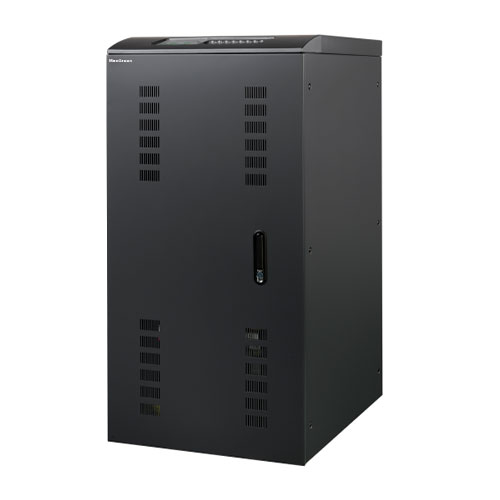

The MaxGreen 3B310-60KVA Low-frequency Transformer Base Online UPS includes active input PFC rectifier (Power Factor Corrector) and makes use of the advantages of PWM technology with IGBT to obtain equipment with high technology features. They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 2kVA that require high reliability and quality supply with low operating and maintenance costs. Data is provided locally through a mimic panel with an LCD display. The communications interface, together with its powerful software, allows users to monitor the status of the unit and provides information on its environment. It comes along with Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, and over-temperature protection. The MaxGreen 3B310-60KVA comes with a 1-year warranty.
