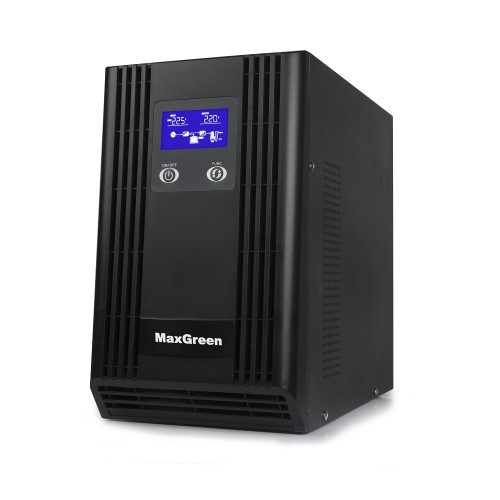

MaxGreen 2KVA Online UPS Long Backup (72V)

MaxGreen 2KVA Online UPS Long Backup (72V)

• Capacity 2000VA

• Input System Single phrase & earth ground

• Ranged Voltage 230Vac

• Frequency 50Hz

• Voltage rang 115~300VAC ± 5VAC

• Frequency range (45~55) ±0.5Hz

• Voltage range of bypass 80VAC*(1±5&)~ 285VAC*(1±5%)

• Voltage range of battery 72VDC

• Battery Capacity 12VDC*6

• Backup time ( Customer Requirement )

• Transient rush current in boo-up stand < 150% of rated current)

• Battery charger time charger to 90% battery capacity in 5 hours (Standard), Dependent on the capacity of external batteries(Long backup time)

• Output Voltage 230vac ±2%(inverter output)

• Output Frequency 50±5%(line mode) 50Hz+-2%(battery mode)

• Dynamic voltage transient range <5%

• Dynamic transient Restore  <60ms

• waveform Sine wave THD <3%(linear load) Sine wave THD <8% (nonlinear load)

• Input power Factor 0.9

• Overload Capacity 105~125%>60s,126~150%>30s The recover point is 90%

• Current peak coefficient 3:1

• transfer time <4ms

• Alarm Function AC/DC input under abnormal, Overload condition and inverter problems


01 year warranty
